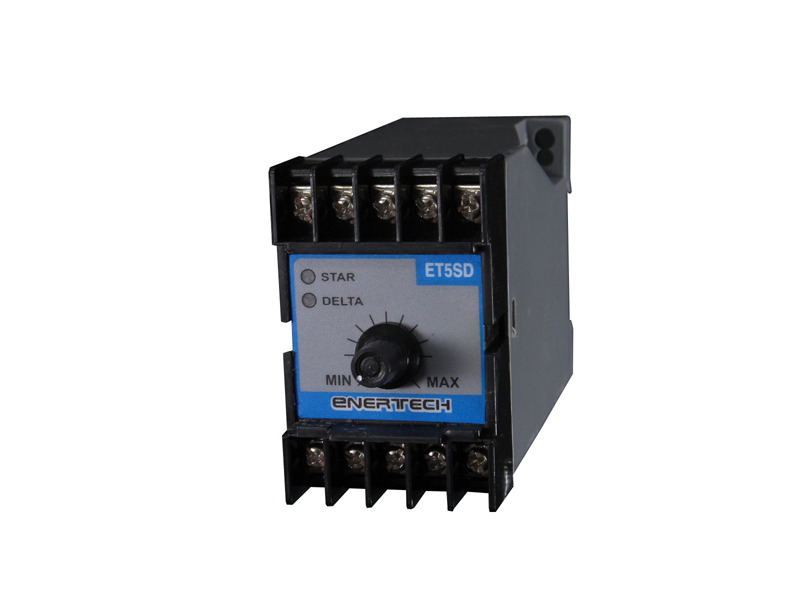

Timer ET5Sd

View PDF

Specifications

  • Star Delta Starter application
  • Suitable for higher HP motors
  • Two relay contacts for Star & Delta
  • Pause time between two relay changeover
  • Time range 60 Sec
  • Time adjustable by Pot
  • LED Indications for Star & Delta
  • Auxiliary supply 230VAC / 440VAC
  • Enclosure : Din Rail Mounting
  • Size : 50 X 70 X 110 mm
  • Contact rating 5 Amps at 230 V AC
  • Supply Voltage 110 V AC, 230 V AC, 415 V AC
  • Time range settable by knob
