Voltage Monitoring Relay

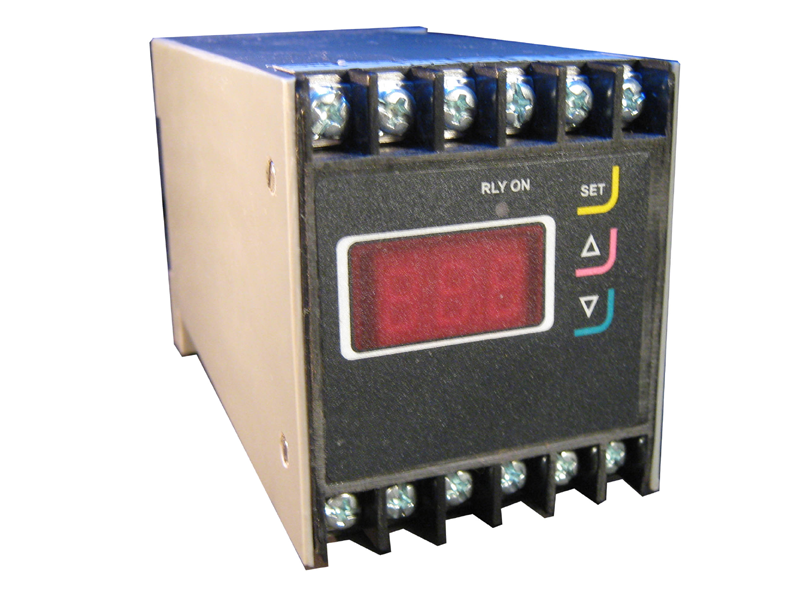

Din mounting

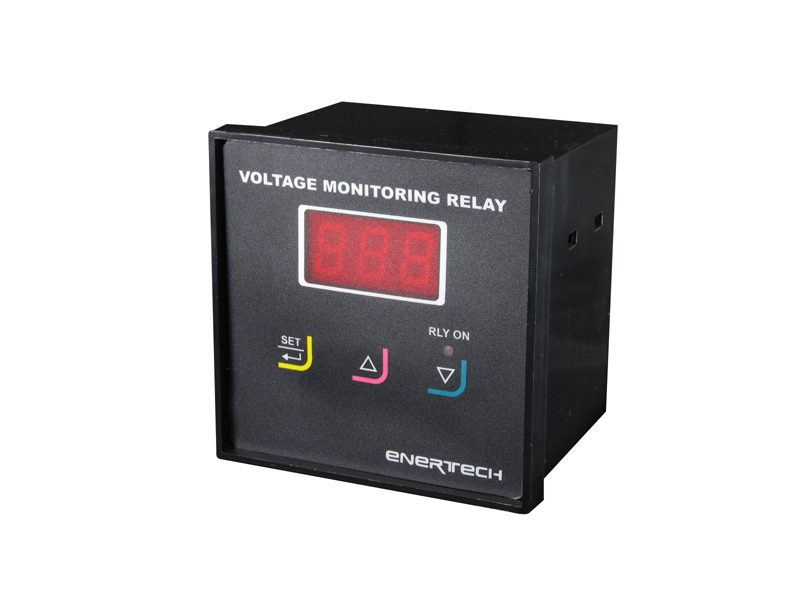

Door mounting
Key Features
- RISC microcontroller based design
- Durable
- 3 digit bright LED display
- Single phasing user settable
- Reverse phasing user settable
- Hi and Lo set points
- 3 key keyboard
- LED Indication for relay
- Hysterisis, tripping time settable
- Reset Auto or Manual settable
- Voltage Unbalance settable
- Calibration through keys
- Output relay 1 C/0 5 A at 230 VAC
Specifications
| Input | R, Y, B, N |
| Auxiliary Supply | R-N |
| Accuracy | +/- 1 % |
| Resolution | 1 volt |
| Enclosure | ABS Plastic |
| Size | Door 96 X 96 X 110 mm Din 60 X 70 X 110 mm |
| Panel Cutout | 92 X 92 mm for door mounting |
