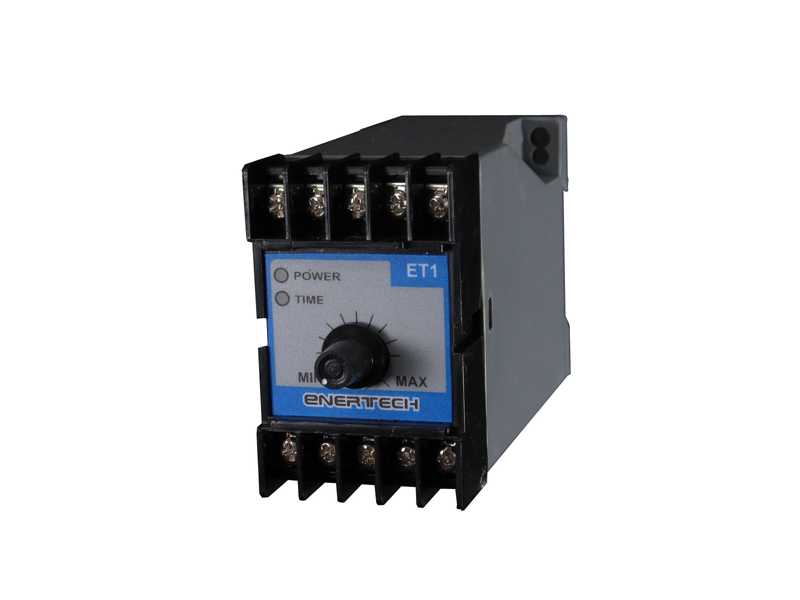

Timer ET1

View PDF

Specifications

  • ON Delay / Interval / Cyclic equal configurations possible
  • Time range 15 Sec, 60 Sec, 8Min, 64 Min
  • Time adjustable by Pot
  • LED Indications for Power & Time
  • One relay output contact rating 5A t 230V
  • Auxiliary supply 230VAC / 440VAC
  • Enclosure : Din Rail Mounting
  • Size : 50 X 70 X 110 mm
  • Time range settable by knob
  • 1 C/O or 2 C/O Relay contacts avalible
  • Contact rating 5 Amps at 230 V AC
  • Supply Voltage 110 V AC, 230 V AC, 415 V AC
