Digital Ammeters

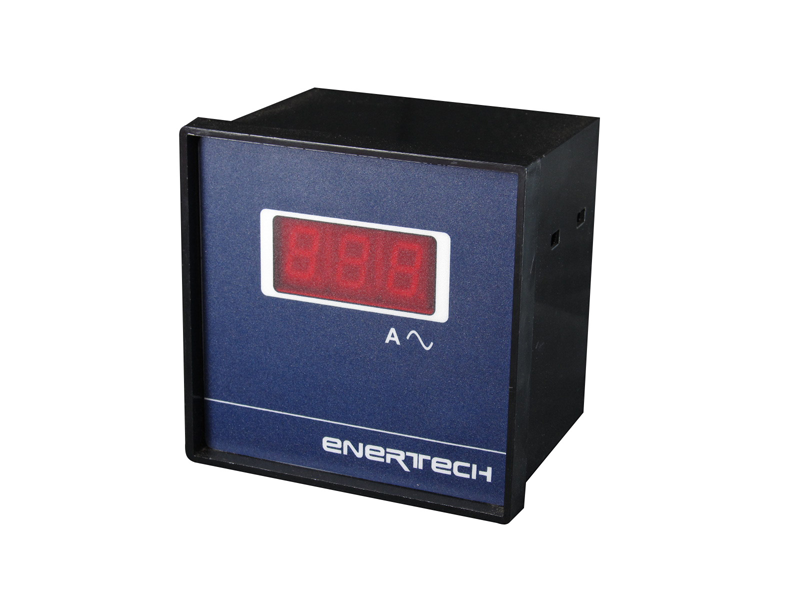

Digital Ammeters 96 X 96 X 65
Technical Specifications
- Input Current : 5.00 A AC Max
- Auxilliary Supply : 230 VAC +/- 10 %
- Accuracy : +/-1 %
- Resolution : 1 Amp
- CT ratio settable upto 1000/5 A
- Enclosure : ABS Plastic
- Size : 96 X 96 X 65 mm
- Panel Cutout : 90 X 90 mm

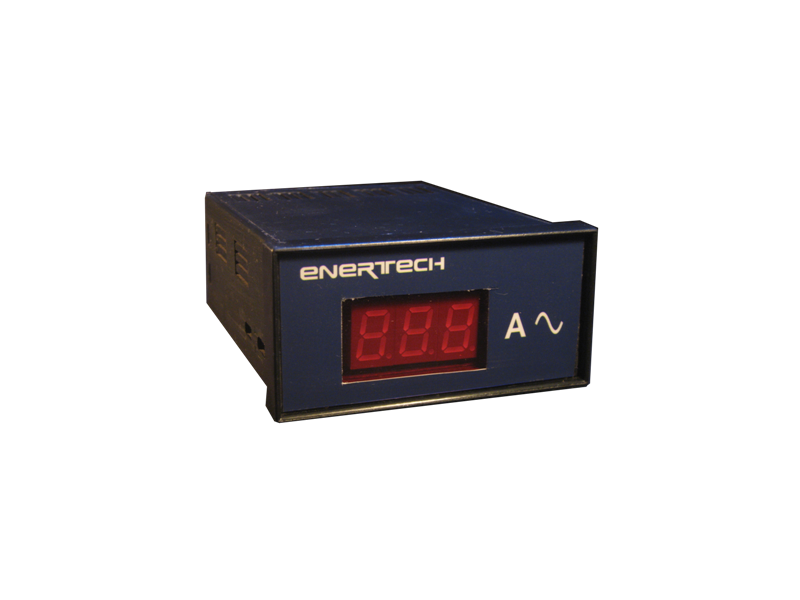

Digital Ammeters 48 X 96 X 110
Technical Specifications
- Input Current : 5.00 A AC Max
- Auxilliary Supply : 230 VAC +/- 10 %
- Accuracy : +/-1 %
- Resolution : 1 Amp
- CT ratio settable upto 1000/5 A
- Enclosure : ABS Plastic
- Size : 48 X 96 X 110 mm
- Panel Cutout : 46 X 92 mm

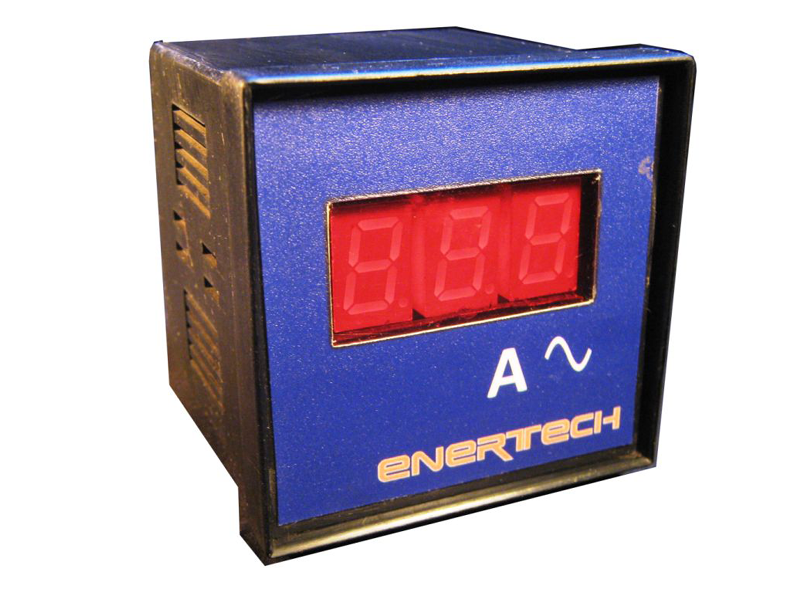

Digital Ammeters 72 X 72 X 65
Technical Specifications
- Input Current : 5.00 A AC Max
- Auxilliary Supply : 230 VAC +/- 10 %
- Accuracy : +/-1 %
- Resolution : 1 Amp
- CT ratio settable upto 1000/5 A
- Enclosure : ABS Plastic
- Size : 72 X 72 X 65 mm
- Panel Cutout : 68 X 68 mm

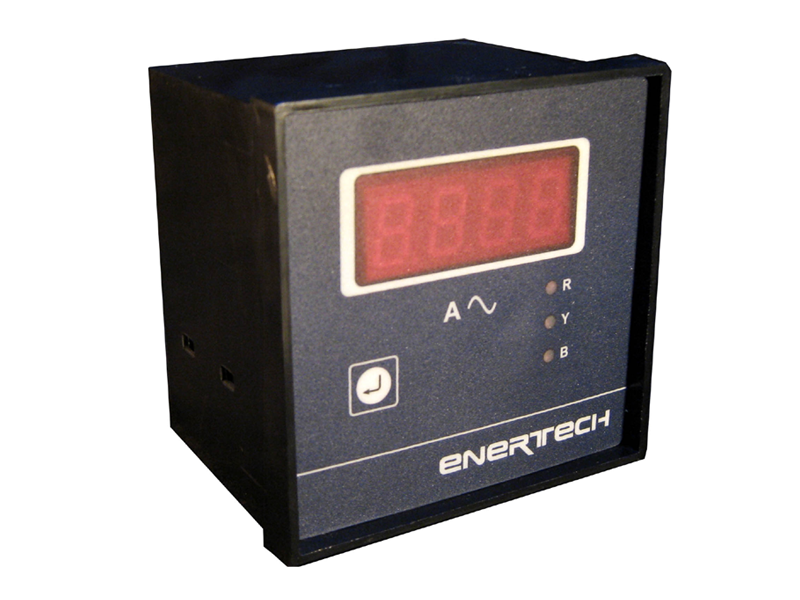

Digital Ammeters 96 X 96 X 65
Technical Specifications
- Input Current : 5.00 A AC Max
- Auxilliary Supply : 230 VAC +/- 10 %
- Display R Y B Currents
- Auto Scanning
- Accuracy : +/-1 %
- Resolution : 1 Volt
- CT ratio settable upto 1000/5 A
- Enclosure : ABS Plastic
- Size : 96 X 96 X 65 mm
- Panel Cutout : 92 X 92 mm
